P270-7.5 Compressor
Brand:

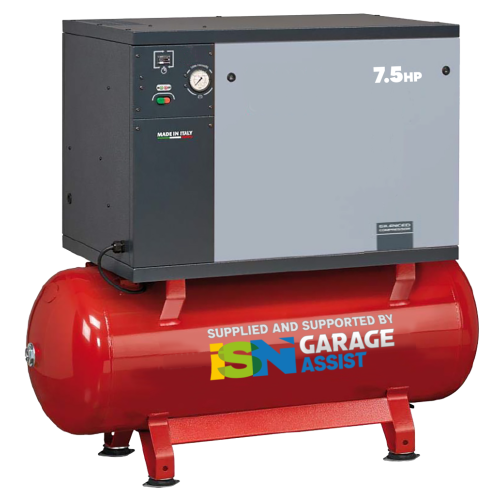

270L 7.5HP 3Ph Piston Compressor
The P270-7.5 is a 270L 7.5HP, 3-Phase Silenced Piston Compressor, offering significantly lower noise levels compared to standard reciprocating compressors. It has been designed with a dedicated cooling system for cooler operation and improved reliability. The low noise levels allow for it to be located directly in the work place with reduced insulation but still providing more comfort through reduced noise levels.
Key Features
• Attractive modern, acoustically designed enclosure for a more comfortable work place.
• Turbo effect intake filter for increase output meaning more air with lower power consumption.
• Convenient access for operator checks and service.
• Functional control panel with simple operation and visualisation of safety alarms and operating data.
• Dedicated cooling system for cooler operation and lower air outlet temperature.
• Compact space saving 500L air receiver with convenient condensate drain.
• Increased capacity at 840L/min displacement with working pressure up to 10 bar.
• High quality electric motor and full thermal/ overload protection.
• Three phase 400V/50hz operation utilising a 5.5kW (7.5Hp) motor.
• Two year warranty.
Power: 5.5kW / 7.5Hp
Capacity (displacement): 840 L/min / 29.7 CFM / 50.2m³/h
Max Pressure: 10 Bar / 145 Psi
Noise: 65 dB(A)
Receiver Size: 270L
Supply: 400V, 3Ph
Product L x W x H: 1544 x 695 x 1505 (mm)
Weight: 265kg
Cylinders: 2
Stages: 2
