S500-10.0 Compressor
Brand:

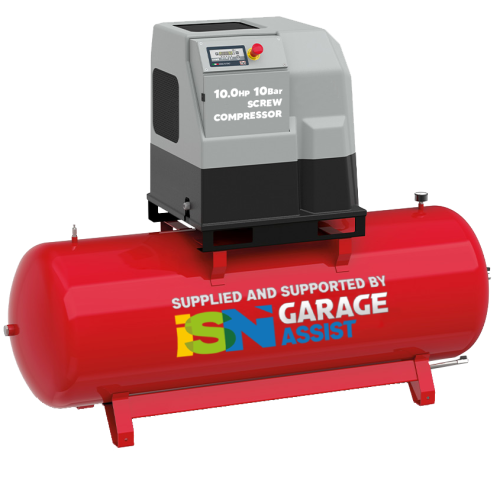

500L 10HP 3Ph Screw Compressor
The S500-10.0 is a 500L, 10HP 3 Phase Screw Compressor with a gearless coaxial drive system, which allows all the power of the electric motor to be transferred to the air-end without losing efficiency and ensuring top operating reliability. This compressor is designed to run continuously under the most severe conditions, with special attention to energy consumption, quiet operation, reduced operating and maintenance costs, and ease of installation and use.
Key Features
• Four maintenance timers
• Auto-restart after power failure.
• Programmable cooling fan temperature
• Programmable remote control starting
• 7.5kW with 500L air receiver and on board refrigerated dryer.
Power: 7.5kW / 10.0Hp
Capacity (displacement): 1050 L/min / 37.1CFM
Max Pressure: 10 Bar / 145 Psi
Noise: 67 dB(A)
Receiver Size: 270L
Supply: 400V, 3Ph
Product L x W x H: 2000 x 600 x 1450 (mm)
Weight: 239kg
Outlet G: 1/2”
