Cascos C5 Wagon Two Post Lift
Brand:
Cascos
Designed specifically for Light Commercial Vehicles, Ambulances, Armoured Vehicles and the like.

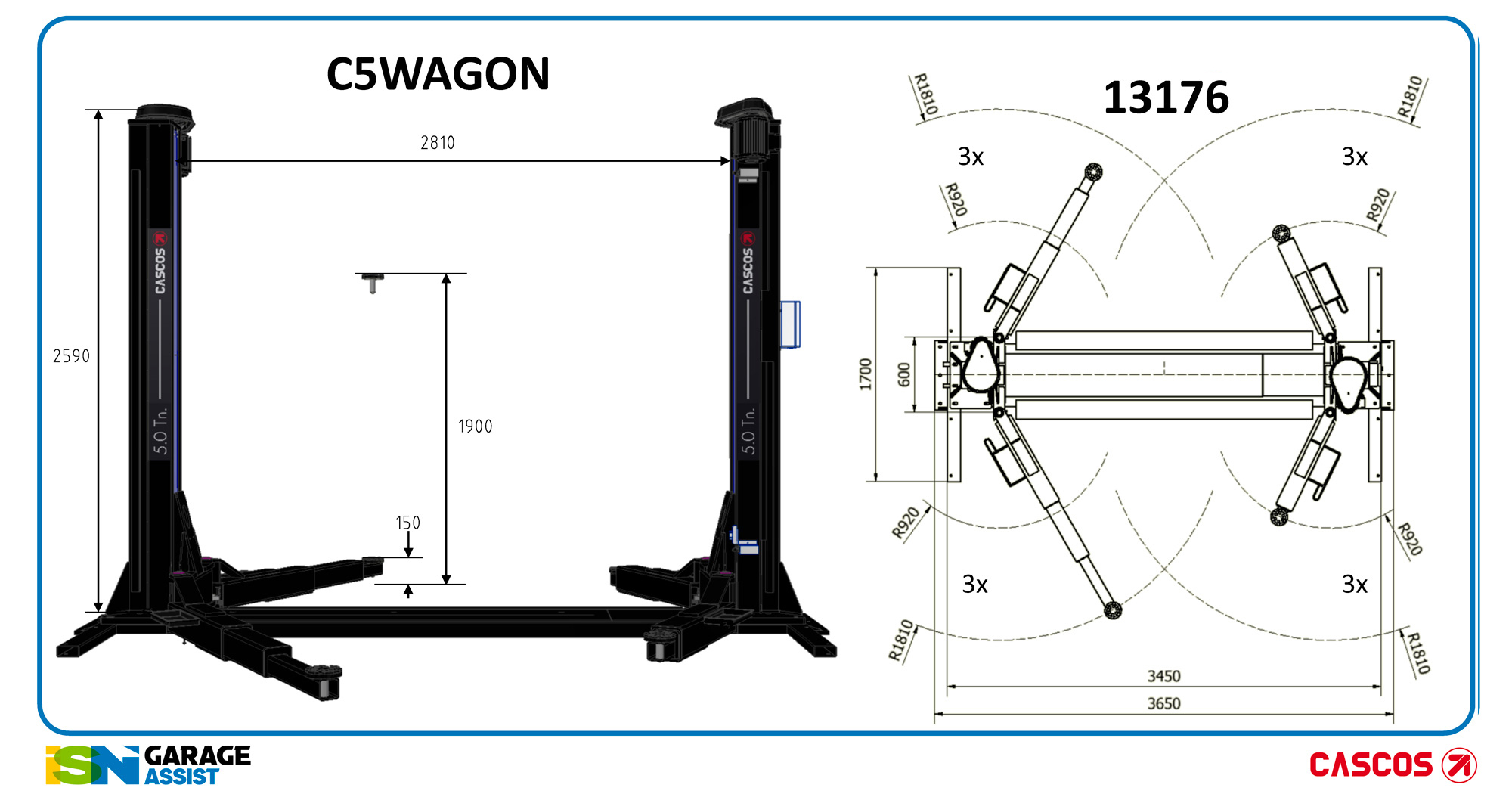

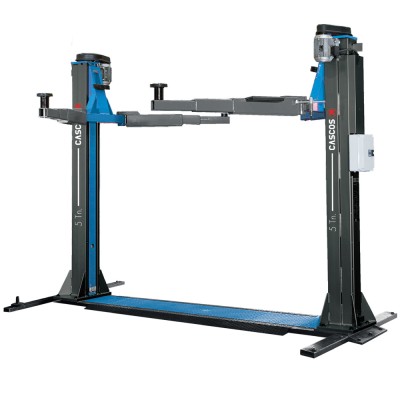

The Cascos C5 Wagon is a solid-based, 2 Post lift with a 5,000kg capacity. Symmetrical 3-stage arms allow complete flexibility, with the option to mount a vehicle in either direction, and the unique ‘SlenderTec’ hot-rolled, solid steel post profiles allow the lift to be constructed with narrow posts, which minimise the lift footprint, with no operational loss.

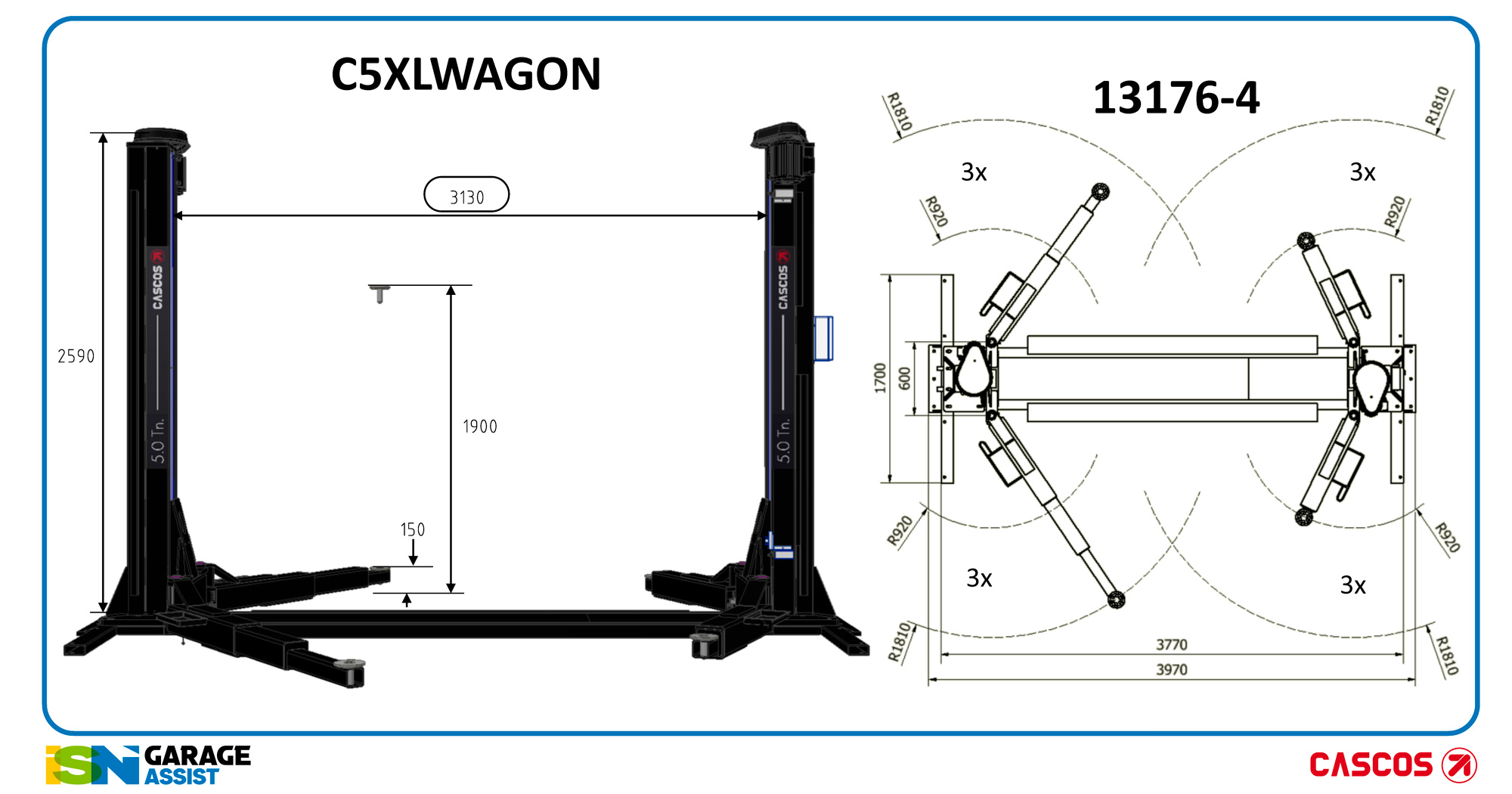

Also available as C5XL Wagon with wider distance between the columns.
The triple stage arms enable maximum scope for both short (where the pick-up points are close together) and long (where they are far apart) applications, and the sheer engineering supremacy means that even larger vehicles feel reassuringly safe on this lift.
PDF: 11 Reasons to invest in a Cascos two post lift
*3 Year Parts & Labour Warranty subject to annual servicing by an ISN engineer.
Slendertec Lifting Columns
Our ‘SlenderTec’ columns are made from rolled, solid steel profiles as opposed to folded sheets of steel as used on our competitors’ lifts. This not only provides up to 60% more strength, but also allows us to have a slimmer column, meaning maximum width between the columns whilst maintain a minimum overall footprint of the lift. On first glance, customers often remark that our Cascos Lifts looks ‘skinny’. They’d be right, but this has nothing to do with lack of strength or build quality, completely the opposite in fact. It is a more expensive method of production, but far more practical and, in plain engineering terms, far more logical than the cheaper option of folded steel sheet.
Bi-directional Loading of Vehicle
The SlenderTec columns enable Cascos lifts to feature symmetric lifting arms as opposed to asymmetric (where the vehicle is offset to allow door opening access, with a Cascos lift this access isn’t a problem). This means that you can drive on or reverse on, it makes no difference.
Quick Release Lifting Pads included
Unlike most other brands, whereby you are forced to purchase additional lifting pads for vehicles which require a higher reach, the C5 and C5XL Wagon both come as standard with 2 sets (standard and high) of our unique quick release lifting pads. This design does away with that laborious task of winding something all the way out only to have to wind the alternative all the way in.
Included as standard, all 2 post lifts are supplied with:
• Tool Trays
• Rubber protections on columns for safe door opening
• Arm safety locks, via spindle rod, offer more positioning possibilities under the vehicle
• Spindle protection to avoid the operator getting dirty when touching the post.
A baseless version, known as the SYNCRO model is also available, which uses our unique PLC system. This system is far more reliable than cable or PCB synchronisation methods, and allows our lift to either be used with an adjustable overhead gantry or under the floor for complete freedom of floor or overhead obstructions.
