megamount 2-60T Tyre Changer
Brand:
Hofmann Megaplan

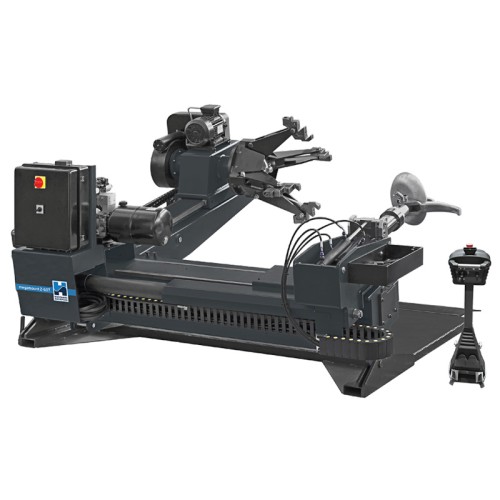

Super-automatic Tyre Changer for wheels of heavy vehicles up to 60”
Super-automatic, leverless, electro-hydraulic tyre changer with synchronised movement of the clamping unit and tool unit, which is designed for fast and ergonomic work on the wheels of trucks, buses, agricultural machinery and earthmoving equipment. Clamping range without extensions is 14" to 42", expandable up to 60" with extensions.
Key Features
Self-centering chuck
The self-centering chuck has 4 jaws with locking capacity from 14” to 42”. Working capacity can be increased up to 60” using optional extensions. The 5 clamping points of the jaws ensure perfect clamping on any type of rim. The spindle has two rotation speeds in two directions.
Control unit
The machine is equipped with a low voltage portable control unit, easily movable inside the working area. The rational lay-out of control levers, buttons and pedals prevents the operator from making accidental operational errors. The control unit also controls the translational movement of the tool-holder carriage. Equipped with stand-by function and emergency button as standard.
Tool-holder arm
The tool-holder arm elevation and rotation are fully automatic. The working system is leverless thanks to the tool clamping in a retracted position. The quick unlocking system ensures ease and speed during operation change. The innovative ‘always in line’ technology allows the disc and tool to always be in the correct working position, ensuring greater ease and speed during mounting/demounting operations, greater safety for the operator and greater protection of the tyre and rim.
