Luxus DX35 Full-height Scissor Lift
Brand:
LUXUS

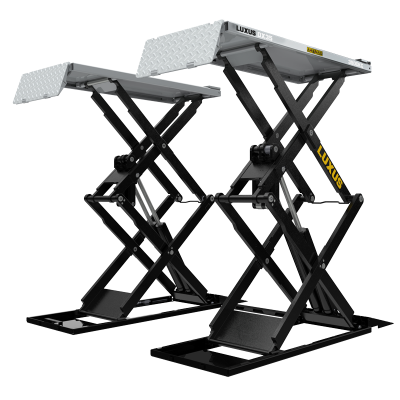

The low profile, 3,500kg capacity, LUXUS DX35 full-height scissor lift continues the LUXUS focus on class-leading vehicle lifts designed for those customers where, quite simply, only the best will do. Suitable for either in-ground or surface-mounted installation, the DX35 is homologated and certified to European Directive EN1493:2010 and boasts a range of luxury features.

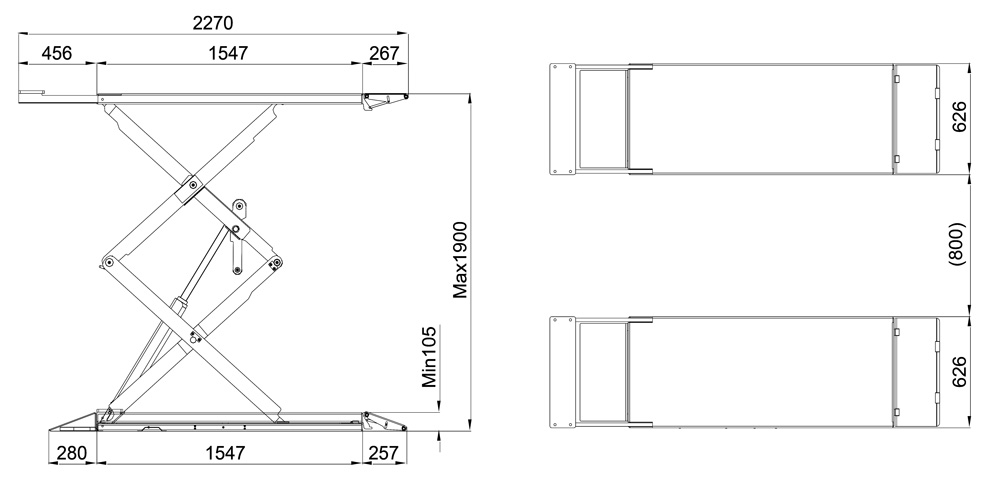

Flexibility to lift the widest possible range of vehicles is assured with an extendable platform length of 1547mm to 2270mm, which is achieved via a telescopic extension at the front end and lockable drive-off ramps at the rear of the lift.
As with all LUXUS products our focus for these lifts is on build quality first and foremost: thickness of steel, quality of welds, and the use of premium quality key components from the most reliable sources. This focus on quality is backed up by the usual LUXUS comprehensive 5 year warranty, which includes an annual inspection and service.

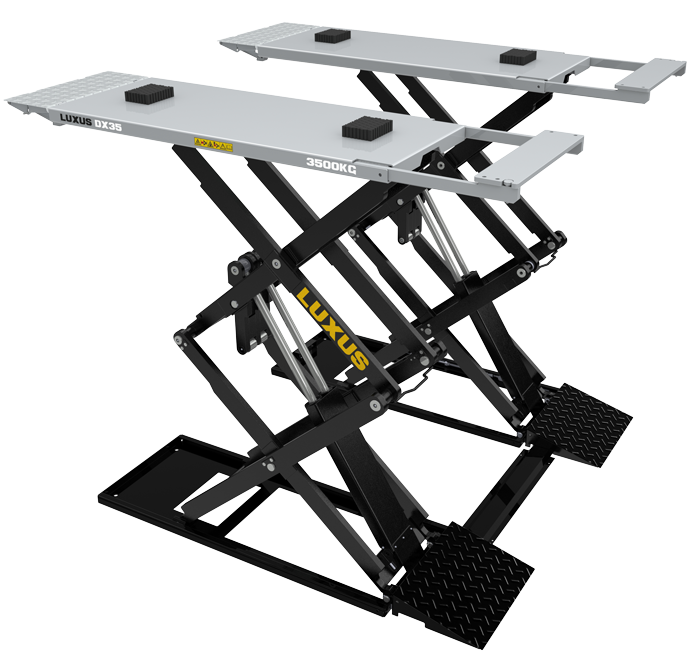

Extendable platform for ultimate flexibility
The key feature of this lift is the extendable platform (1547mm – 2270mm), which is significantly more flexible than you will find on other scissors of similar capacity. As with most scissors, the drive-on ramp will lock in a horizontal position but unlike other scissors, the other end of the platform slides in and out, allowing you to position the lifting pads perfectly under the chassis mounting points of a much wider variety of vehicles.
• Extendable drive-on, drive-off platforms for maximum vehicle flexibility
• Double master/slave hydraulic circuits to ensure perfect synchronization
• Solenoid safety valve in each hydraulic circuit
• Automatic levelling (achieved by simply pushing a bleeding button)
• Equipped with pressure overload valve in power unit
• 24V safety control
• Alarm during final lowering phase
• Manual emergency lowering
• Proximity sensor to detect obstacles under the lift, maintaining vehicle stability
• Foot protection function, which activates during decent below 240mm lift height
Luxus vehicle lifts are supplied with a 3-year parts and labour warranty, which is subject to proof of maintenance. This includes an inspection and service from a factory trained engineer in the second and third years of ownership.
Warranty exclusions
Normal wear and tear of items under regular use, such as lift pads ropes and nylon guides, consumables (e.g. hydraulic oil) - these items will be invoiced at the time of service. Neglect, (lack of regular operator servicing/adjustments as detailed in the operator’s manual); misuse, deliberate, or accidental damage; modifications/alterations; removal or relocation of the equipment; acts of nature (e.g. flooding, or lightning strike), and unauthorised repairs by anyone other than ISN Garage Assist approved engineers.
Proof of maintenance will be required in the event of a warranty claim.
The HSE document for ‘Thorough examinations and testing of lifts’ is available here
