Wall-mounted CCD wheel alignment equipment for cars and LCVs

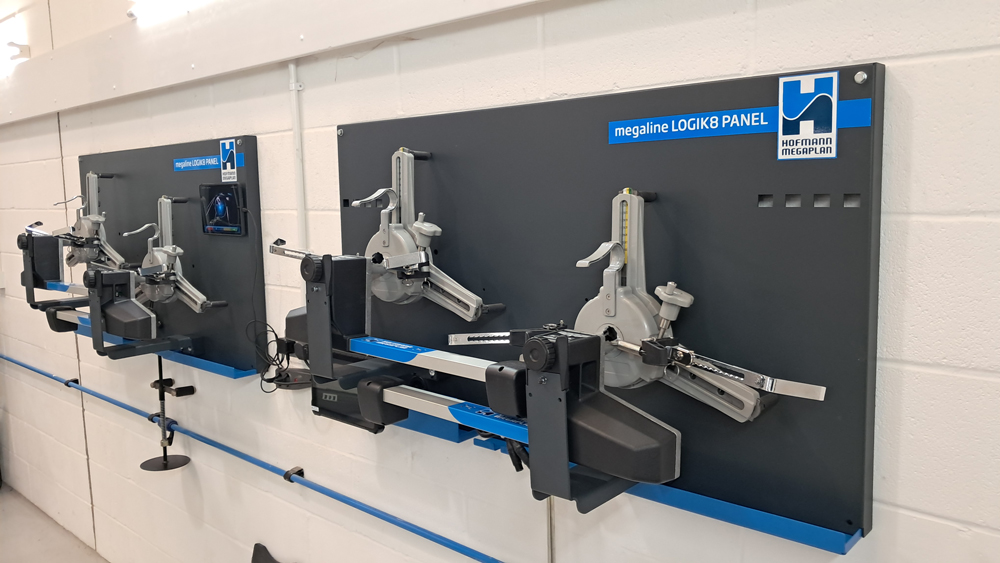

The Logik 8P 8CCD Wheel Alignment System is the very latest offering from the hugely popular Hofmann Megaplan 'Logik' line-up. The alignment equipment is wall mounted on two wall panels that serve as both storage and charging station for the CCD sensors and 'Toughpad' operators tablet, while minimising workshop space requirements.

Awaiting updated images. UK specification includes premium quality 3-point clamps, not the 4-point clamps shown.

Conventional cabinet-based wheel alignment equipment can take up space in a garage that might be better used for an alternative piece of equipment. Now, with the Logik 8P, you get the best of both worlds, with a wall-mounted wheel alignment system that releases valuable workshop floor space for other activities.

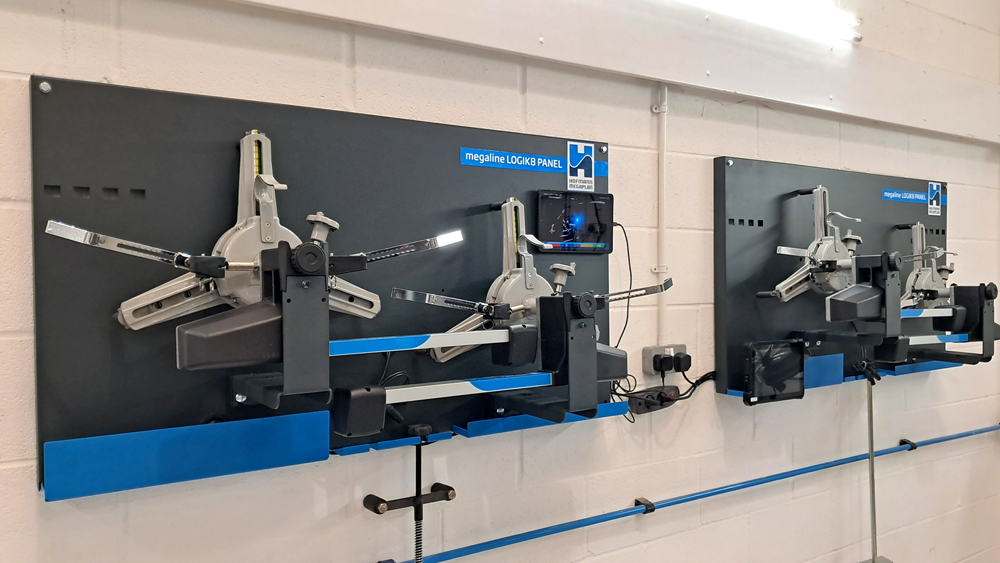

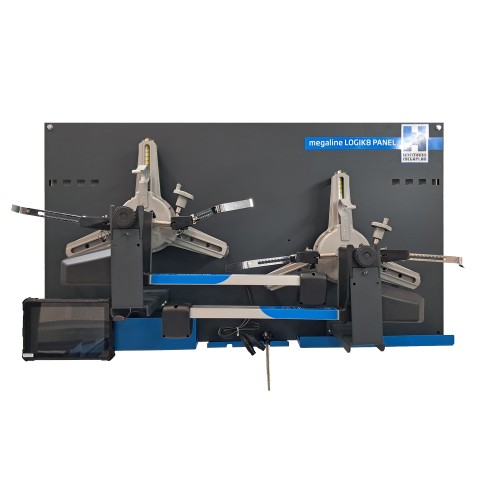

The two wall panels are equipped with storage trays and brackets for the wheel clamps, sensors, the Toughpad, brake and steering locks. When suitably connected to a power source, the Toughpad and sensors, can be recharged while being stored. There’s no need to disassemble the batteries; keeping the recharge process quick and easy.

Accurate measurements
CCD (Charged Coupled Device) sensor technology enables a quick and accurate measurement of all alignment parameters for cars and LCVs. Sensors are powered by long-life lithium batteries, which are immune to the memory effect and can be recharged at any time. The MEMS accelerometer (Micro Electro-Mechanical System), together with the CCD cameras, enable the acquisition of the alignment parameters of the wheels, including caster & camber. The sensors are mounted on premium quality Italian-engineered 3-point clamps, which are lighter and arguably faster to set-up than any other clamp of similar design on the market.

Toughpad
The alignment software is managed by a waterproof and dust-proof Toughpad with 10” touch screen and rubberised shatterproof cover. The Toughpad operates on Windows 10, with Wi-Fi and Bluetooth connections ensuring optimal ease of use anywhere around, or under a vehicle. Magnets on the rear of the Toughpad allow it to be secured on a ramp, or rear axle of a vehicle while making adjustments.

Space-saving solution
The two independent panels do not have to be positioned together. They can, for example, be located on opposite walls for maximum installation flexibility. Each alignment is managed via the Toughpad tablet, which communicates with the sensors via Bluetooth, ensuring constant quality in data transmission.

Regularly updated database
The database, which is updated every four months, contains more than 55,000 vehicle models with related specifications. Software and database updates take place automatically via internet connection.

Diagnosis report
The diagnosis report shows the actual measurements taken, alongside the vehicle specifications provided by the database, highlighting in red anything that needs to be adjusted. An Audit function provides a diagnosis of possible driving disturbances resulting from unsuitable values detected.

  • Compact, wall-mounted 8CCD wheel alignment system.
  • Stored on two wall panels, which can be located anywhere in the workshop for maximum installation flexibility and also serve as a charging station for the CCD sensors and ToughPad operators tablet.
  • Premium quality Italian-engineered 3-point clamps - Lighter to carry and arguably faster to set-up than any other clamp of similar design on the market.
  • Alignment process is managed via the Toughpad tablet, which communicates with the sensors via Bluetooth, for complete portability around a vehicle:
    • 10” touch screen.
    • Extremely robust – rubberised waterproof, dust-proof and shatterproof cover.
    • Windows 10 operating system with Wi-Fi connection.
    • Magnetic back panel – will attach to any steel surface while making adjustments.

Logik-8p-dims-web LOGIK 8P Wheel Aligner
