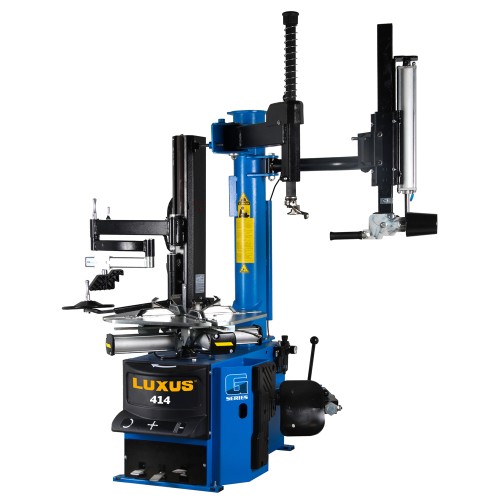

Luxus 414 G-Series Tyre Changer
Brand:
LUXUS
The Luxus 414 G-Series is the bigger brother of the 314.
Boasting 24” external rim clamping (26” internal) and a 15” rim width capability, the Luxus 414 G-Series is a superbly capable and practical machine for busy workshops. The neat, compact swing-arm design is maintained in order to minimise footprint, but the ability to handle any size rim or tyre isn’t compromised in this extremely heavy duty model.

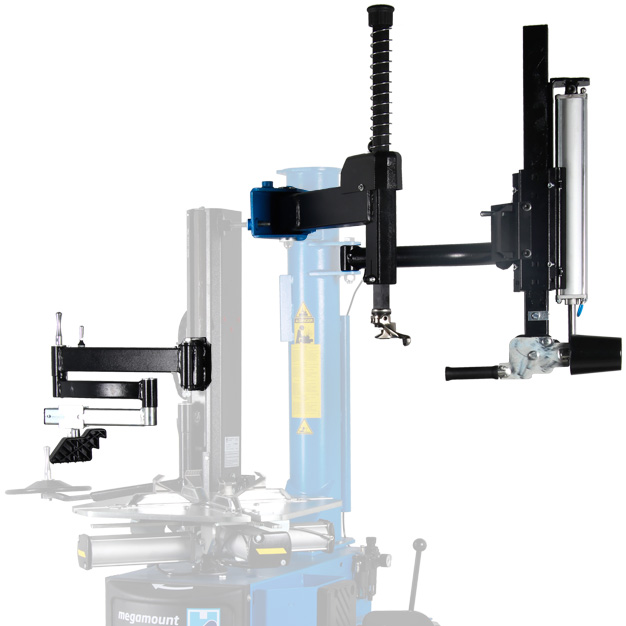

The ‘megafit Plus’ system provides 2 space-saving, robotic assist arms to ensure all difficult, low-profile and run-flat tyres can be handled with relative ease.
12V version for mobile fitting operations also available. Click here.
This model is a more capable option for those looking for a traditional, swing-arm machine and all of the simplicity a semi-automatic unit serves, but also, one which can stand even higher volumes and cater for even more ‘exotic’ rims. The most notable design differences between the 414 and a conventional ‘swing-arm’, like the 314, is the super-duty cylindrical turret which provides maximum rigidity, and the increased clamping range.
Key features include
• ‘megafit Plus’ assist arm system with 2 space-saving, robotic assist arms
• Reinforced chassis.
• QuadraClamp turntable.
• 10” to 26” clamping.
• Fitting head designed for both standard and low profile tyre applications.

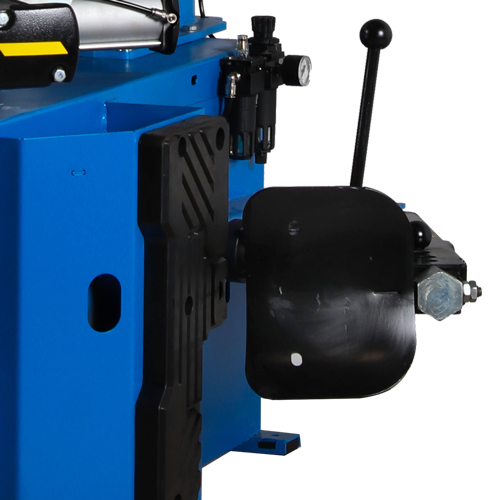

• Adjustable bead breaker with extendable arm.
• Extra-high tower for extra wide tyres, swinging horizontal arm with 41 mm diameter operating arm.
• “Easy Access” extractable pedal box for quick service.
This unit is also available in a 12V version for mobile fitting operations.
