velomount™ 3240 Tyre Changer
Brand:
Balco

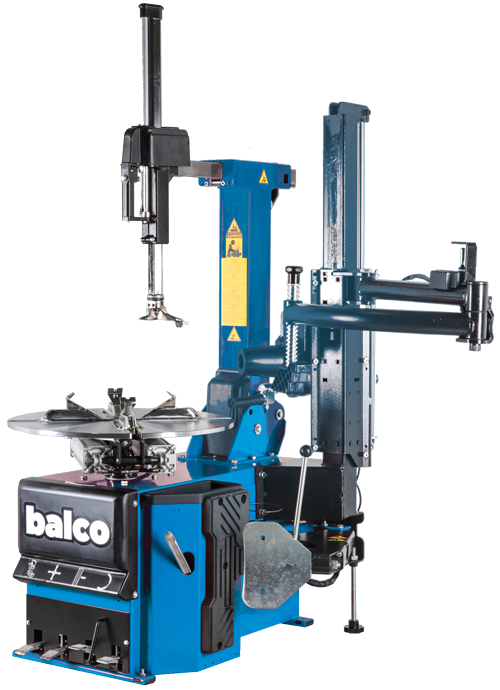

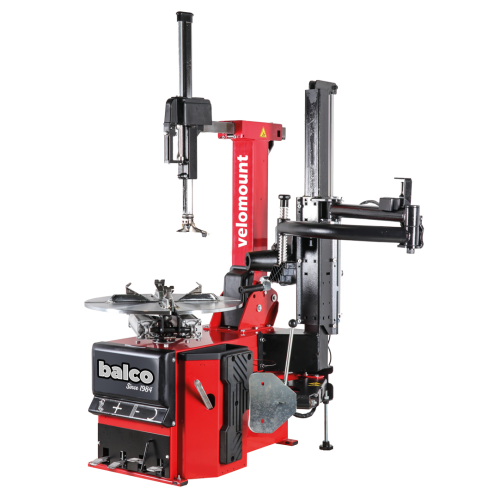

The velomount 3240 from Balco is a heavy-duty, high-performance tyre changer with 10” to 24” clamping range.
From the extra-thick turntable plate to the oversized vertical column, the 3240 is unashamedly ‘over-engineered’ in every department, ensuring this machine can withstand the pressure of the most demanding tyre shop, or anyone who needs to ensure that rims are handled with the utmost care.

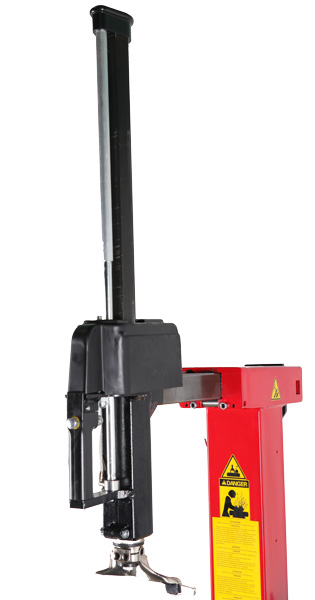

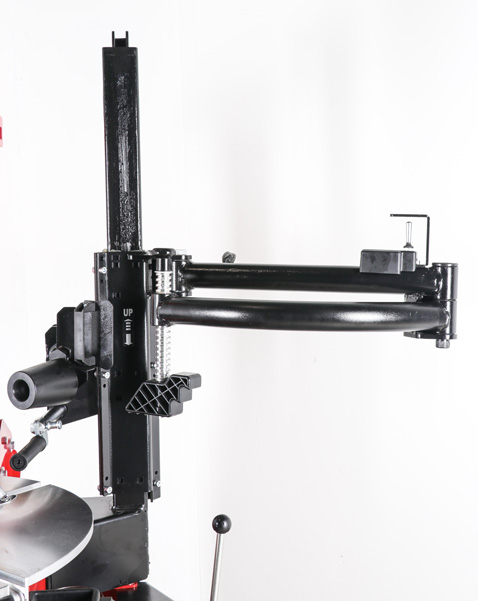

A robotic pipe provides fully-automatic control of the up/down movement of the demount head (instead of the manual, spring-movement) and a multi-functional, highly-versatile ‘Assist’ arm, the velofit 3 (an oft copied, but never equalled design!) ensures one-man, safe and simple handling of the toughest stiff-sidewall tyres.
Features
- Tilt back tyre Changer 10" - 24" clamping
- Heavy Duty construction
- Button operated demount head
- Multi-functional, highly-versatile ‘Assist’ arm
Technical Specification

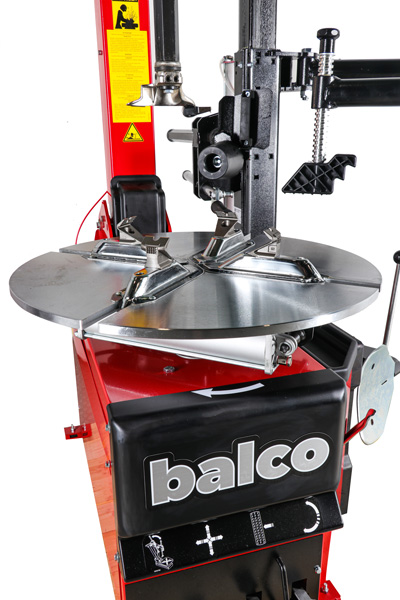

| Rim clamping range: | 10’’ – 24’’ (22” External) |
| Max tyre diameter: | 1100 mm – 43’’ |
| Max tyre width: | 390mm - 15’’ |
| Bead breaker cylinder force at 10 bar: | 30800 N |
| Operating pressure: | 10 bar (145 Psi) |
| Power supply: | 220V – 1ph |
| Motor power: | 1.1 kW |
| Net weight: | 307 kg (with assist arm) |

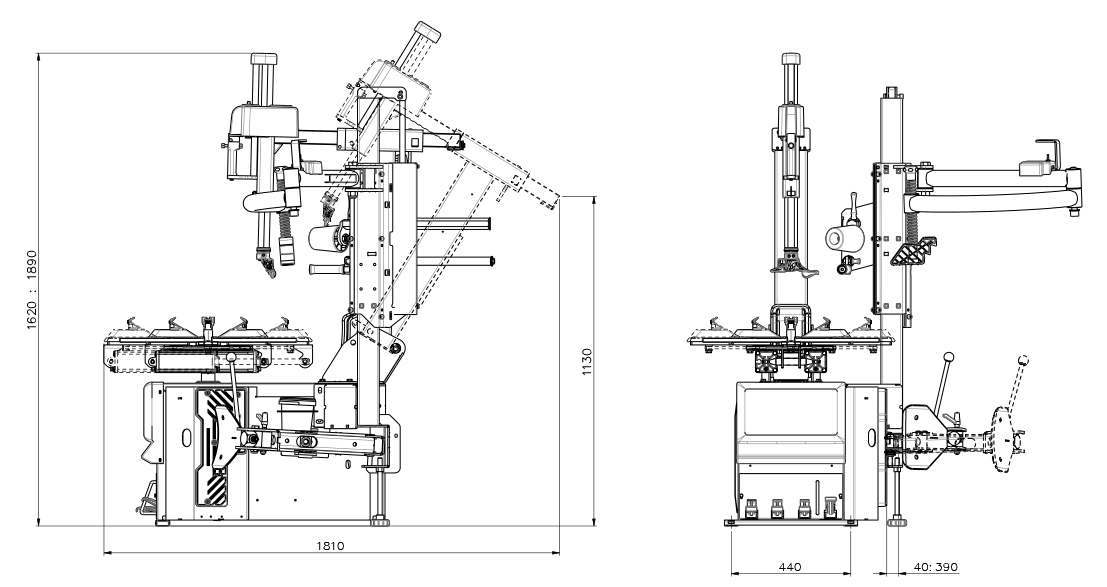

| Max overall dimension (H x W x D): | 1910mm x 1590mm x 1820mm (with assist arm) |
